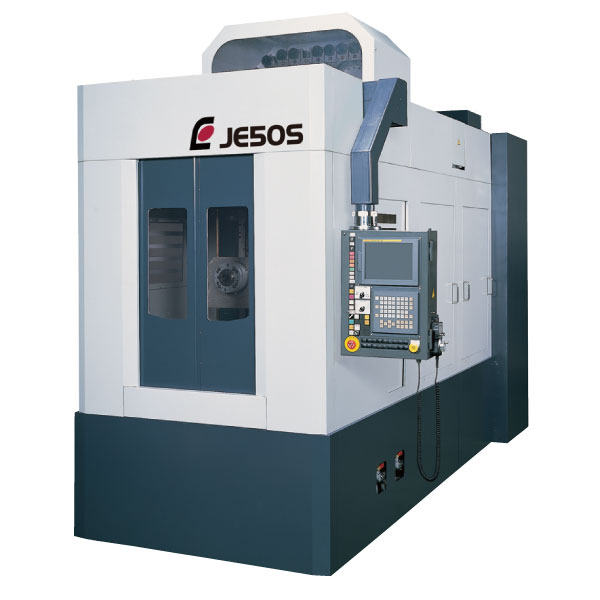

Fixed table 40 taper machining center best suited for mass production line.
Feature
- A fixed table machining center well suited for a production line. Machine width 1,440mm.
- Direct drop chip evacuation.
- Separation of machining area and machine drive-parts (zone cover).
- Dynascale (original compensation technology) *Option
- Hardware and software with consideration to the energy conservation.
Basic specification
| Axis travel | X axis | 500mm (19.6in) |
| Y axis | 500mm (19.6in) | |
| Z axis | 500mm (19.6in) | |
| Feedrate | Rapid feedrate | 60,000mm/min (2,362.2in/min) |
| Cutting feedrate | 15,000mm/min (590.5in/min) | |
| Table (Option) |
Table work area size | Ф400mm (Ф15.7in) |
| Maximum loading weight | 650kg (1,433lbs) | |
| Maximum loading capacitiy | Ф630 x 870mm (Ф24.8in x 34.3in) | |
| Spindle | Maximum spindle speeds | 12,000min-1（15,000min-1 *Option） |
| Tool shank type | MAS BT40 | |
| ATC | Magazine tool capacity | 24tools |
