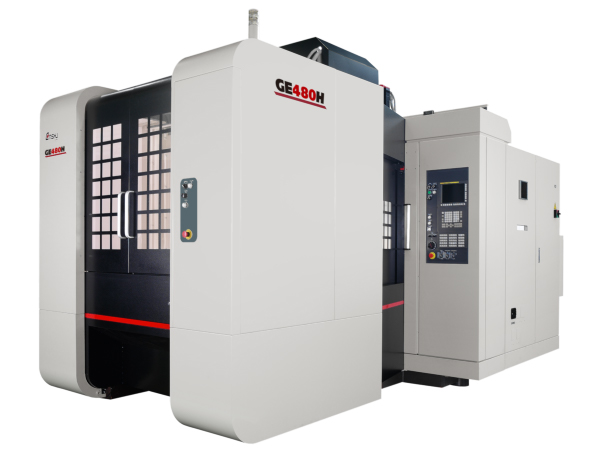

GE480H

The most advanced high-speed horizontal machining center proposed by Enshu keeping the goodness of GE460H has expanded the amount of movement of each axis.

Feature

  • High rigidity is carried from Heavy construction, thick machine base and rib.
  • Heavy duty cutting is available with High torque spindle(option).
  • Smooth cutting chip disposal is carried from basic construction using center trough style design.
  • Easy application for multi-ATC and APC by using interface.

Basic specification

Axis travel X axis 1,000mm (39.4in)
Y axis 900mm (35.4in)
Z axis 1,050mm (41.3in)
Feedrate Rapid feedrate 50,000mm/min (1,968.5in/min)
Cutting feedrate 15,000mm/min (590.6in/min)
Table Table work area size 630 x 630mm (24.8 x 24.8in)
Maximum loading weight 1,200kg (2,645.5lbs)
Spindle Maximum spindle speeds 10,000min-1
Tool shank type MAS BT50
ATC Magazine tool capacity 40tools
