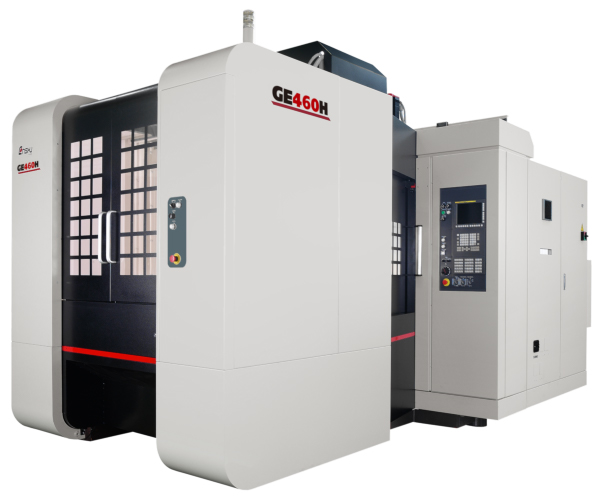

The most advanced high-speed horizontal machining center proposed by Enshu keeping the goodness
Feature
- Fast rapid feedrate (90m/min-1) brings the highest level of productivity.
- High speed, lubrication, cooling combining a high-grade spindle.
- Further space savings achieved.
- Considering the mechanical configuration of energy saving.
Basic specification
| Axis travel | X axis | 600mm (23.6in) |
| Y axis | 600mm (23.6in) | |
| Z axis | 600mm (23.6in) | |
| Feedrate | Rapid feedrate | 90,000mm/min (3,543.3in/min) |
| Cutting feedrate | 40,000mm/min (1,574.8in/min) *AI contour control | |
| Table | Table work area size | 500 x 500mm (19.7 x 19.7in) |
| Maximum loading weight | 500kg (1,102.3lbs) | |
| Spindle | Maximum spindle speeds | 15,000min-1 |
| Tool shank type | MAS BT40 | |
| ATC | Magazine tool capacity | 40tools |
