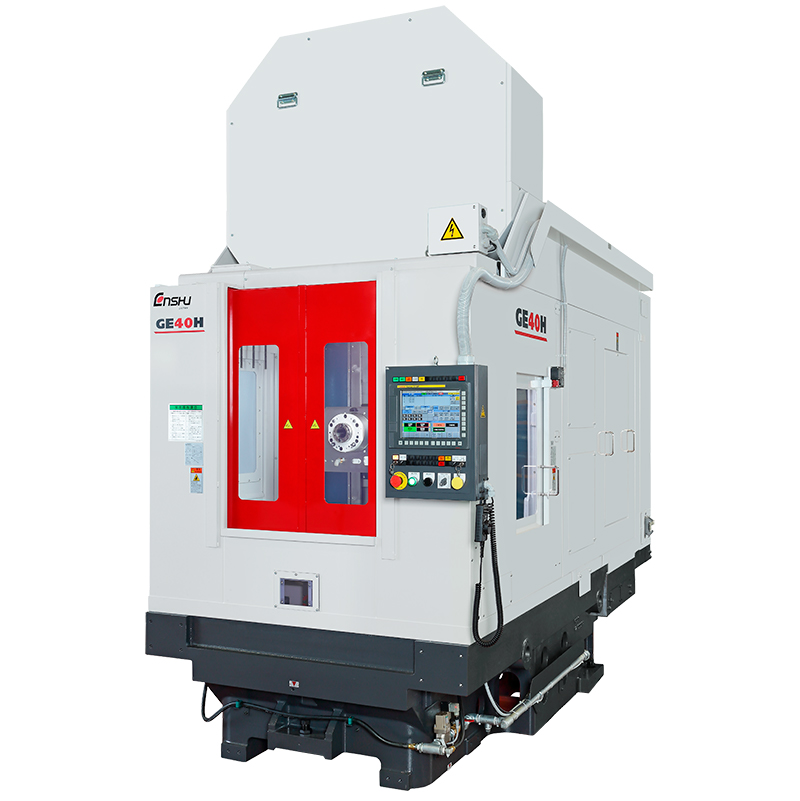

GE40H, Horizontal Machining Center is suitable for high volume parts maching.
The machine has the high reliability and high production features needed for mass production.
The machine has the high reliability and high production features needed for mass production.
Feature
- #40 spindle of high-output and high-rigidity.
- Wide processing erea.
- It is possible to use various fixture and gantry.
- This machine has extra basic functions as a system machine for mass production.
- This machine is "Internet of Things" ready.
Basic specification
| Axis travel | X axis | 500mm |
| Y axis | 500mm + 200mm(ATC stroke) | |
| Z axis | 500mm | |
| Feedrate | Rapid feedrate | 60,000mm/min |
| Cutting feedrate | 15,000mm/min | |
| Table (Option) | Table work area size | Ф400mm (Ф320mm) |
| Maximum loading weight | 650kg (450kg) | |
| Spindle | Maximum spindle speed | 12,000min-1 |
| Tool shank type | MAS BT40 | |
| Automatic tool changer | Magazine tool capacity | 24tools (Standard), 30tools (Option) |
