Built-in Type Auto Parts Loader E-Loader / WE30V

Feature

Features
  • The E-Loader is an automatic parts transfer system that is integrated within ENSHU machining centers.
  • Compactly mountable in the machine
  • The drive source of the E-Loader utilizes the machine’s X-axis

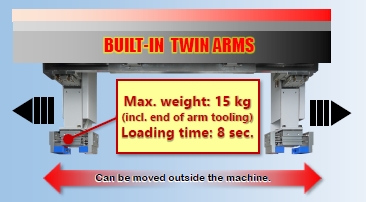

  • Efficient transfer with twin arms
  • Transfer is also controlled from the main CNC, so it is easy to understand and with a sense of security
  • Realization of low cost through effective use of the machine
  • Reliable support provided by only one source, ENSHU

Video

Mechanism

Two machining centers connected

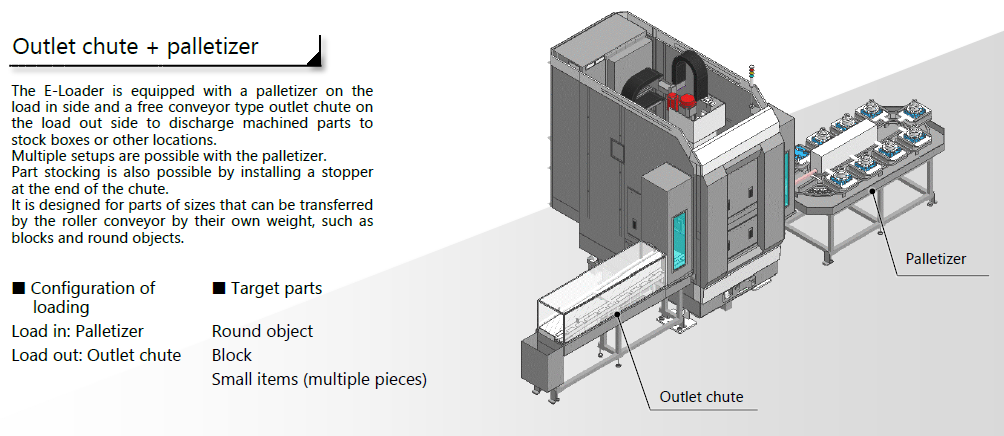

Pallet stocker connection


◎The machine’s X-axis is temporarily connected to the transfer loader, and the transfer hand is moved by the X axis.
◎In addition to the X-axis movement stroke, the addition of a stroke transferred through rack and pinion gears enables doubled

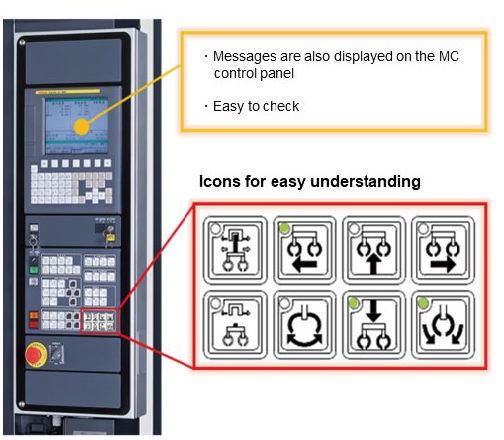

Easy Operation

Easy single-action operation from machine
All operations possible on the spot.

Case StudyPlease contact sales for details.

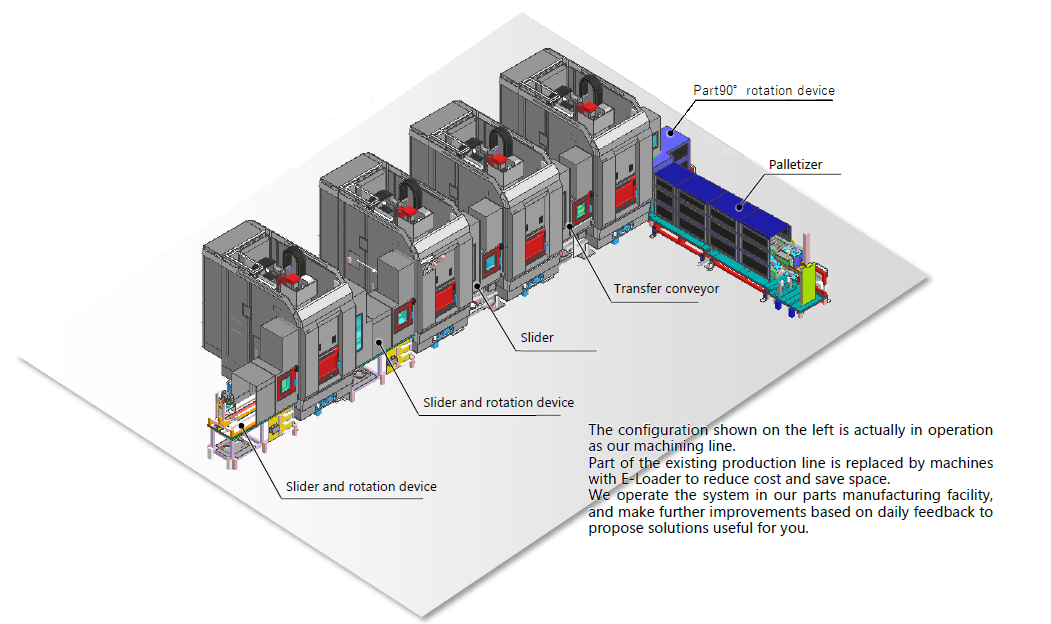

Example of line configuration (4 units)

Connection example with a lathe
