Built-in Type Auto Parts Loader E-Loader / GE30V

Feature

Features
  • The E-Loader is an automatic parts transfer system that is integrated within ENSHU machining centers.

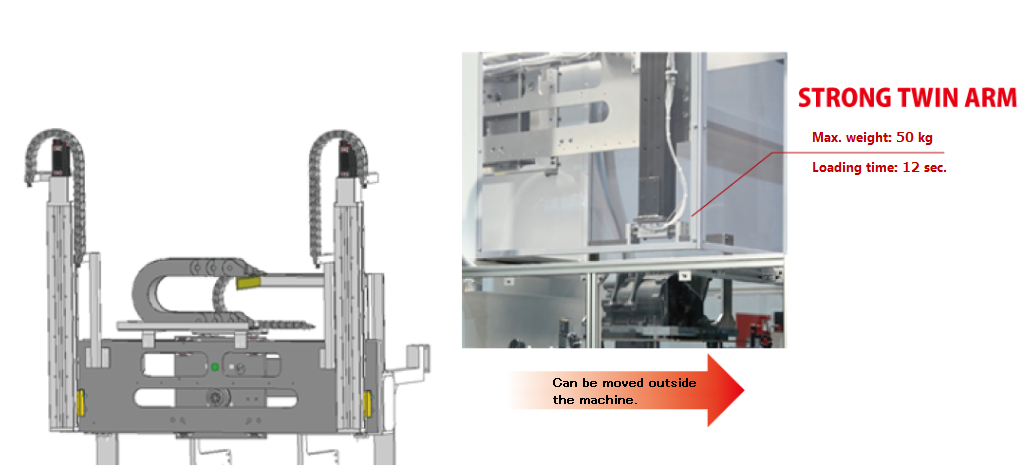

  • Work weight 50kg
  • Positioning possible with vertical lift servo specifications
  • Easy-to-see and easy-to-use 15-inch touch panel(31iB Plus NC)
  • Can carry large boxed workpieces
  • Making automated transport easier and more accessible

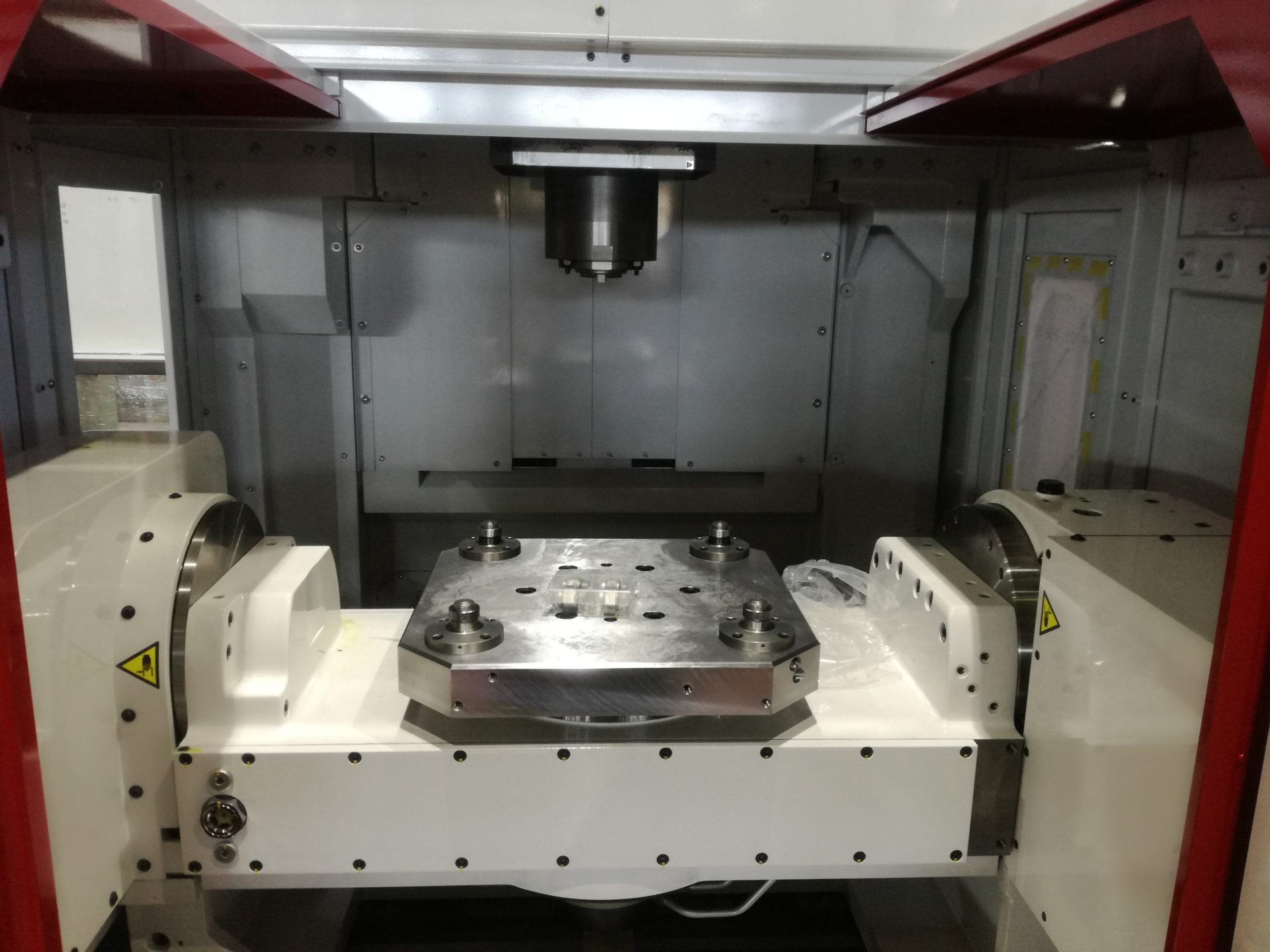

Added GE30V new option

◎In addition to the standard spindle motor specification, the spindle motor specification with improved output can be selected.
◎X-axis/Y-axis stroke extensio
In addition to the standard st600mm, an optional st800mm has been added (E-Loader specifications are X600/Y800)

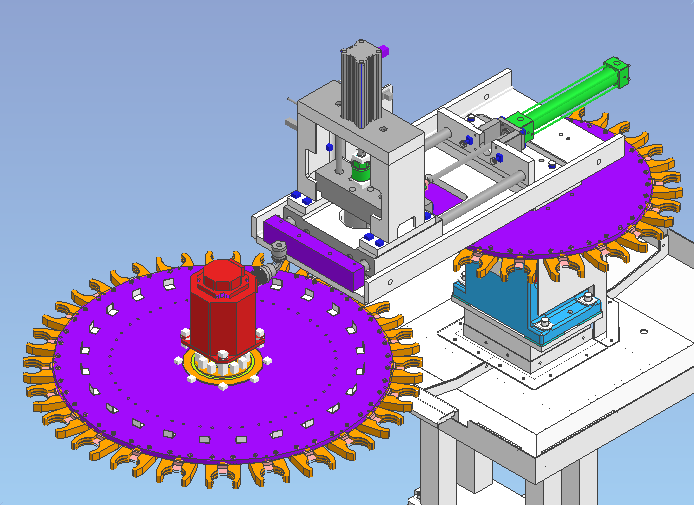

◎Supports multiple tools, can be expanded to a maximum of 40 (BT30)/36 (BT40) by adding a sub-magazine

◎The machine’s X-axis is temporarily connected to the transfer loader, and the transfer hand is moved by the X axis.
◎ In addition to the X-axis movement stroke, the addition of a stroke transferred through rack and pinion gears enables doubled movement of the end of arm tooling.

Video

Mechanism


◎The machine’s X-axis is temporarily connected to the transfer loader, and the transfer hand is moved by the X axis.
◎ In addition to the X-axis movement stroke, the addition of a stroke transferred through rack and pinion gears enables doubled movement of the end of arm tooling.

Easy Operation

Easy single-action operation from machine
All operations possible on the spot.

Easy-to-see and easy-to-use 15-inch touch panel(31iB Plus NC)
・Operation selection on the touch panel
・Messages and operation buttons are displayed on the screen for easy confirmation.

Case StudyPlease contact sales for details.

Line configuration example:
GE30V E-Loader + Pallet Stocker

Unmanned operation with E-Loader + pallet stocker system
Watch video >
