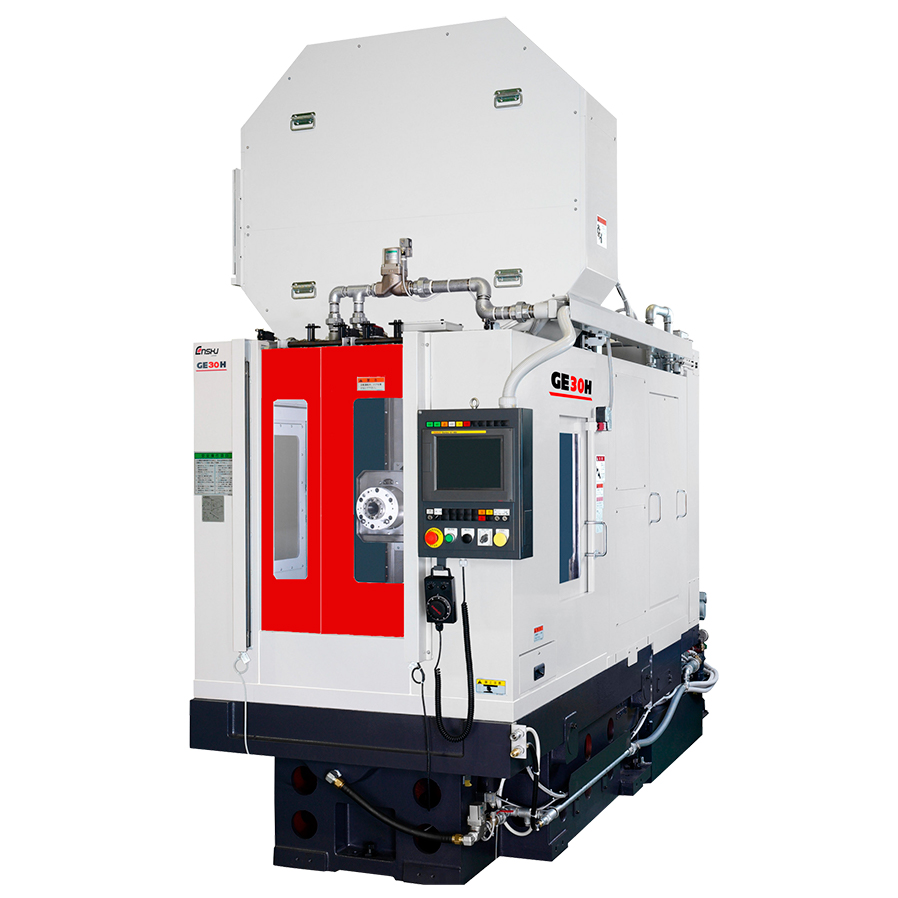

High performance horizontal machining center combining excellent stability and high speed spindle.
Feature
- Its working area is as wide as BT40 MC.
- Fixed angular design and tight width (1,150mm) is suitable for making a production line.
- Direct drop type chip disposal.
- Separation of the machining area from the machine driving area (Zone cover).
- To shorten the cycle time by speeding up To reduce power consumption from ex-model.
- Both BT30 and BT40(option) spindle availability enables various process in one line.
Basic specification
| Axis travel | X axis | 500mm (19.7in) |
| Y axis | 500mm (19.7in) | |
| Z axis | 500mm (19.7in) | |
| Feedrate | Rapid feedrate | 60,000mm/min (2,362.2in/min) |
| Cutting feedrate | 15,000mm/min (590.6in/min) | |
| Table | Table work area size | Ф400mm (Ф15.7in) |
| Maximum loading weight | 500kg (1,102.3lbs) | |
| Spindle | Maximum spindle speeds | 13,000min-1(BT30 Standard), 8,000min-1(BT40 Option) |
| Tool shank type | MAS BT30（Standard)）, MAS BT40（Option） | |
| ATC | Magazine tool capacity | 24tools |
